Heated steering wheel */seat heaters */seat ventilators *
TABLE OF CONTENTS
PREVIOUS SECTION
NEXT SECTION

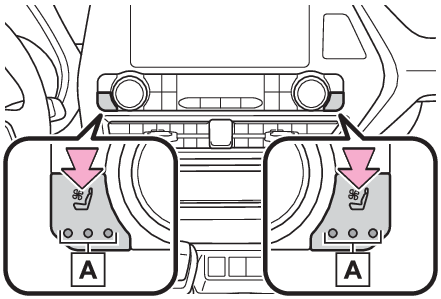

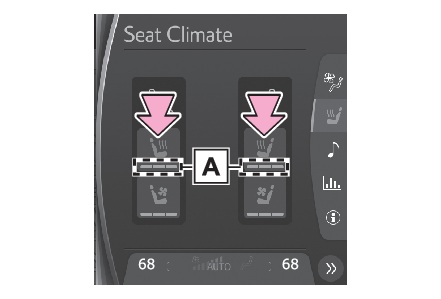

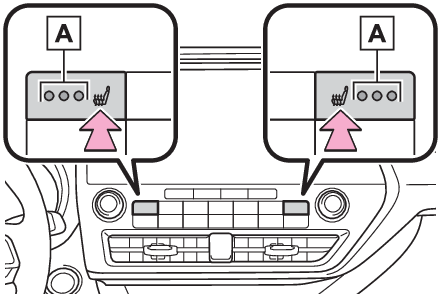

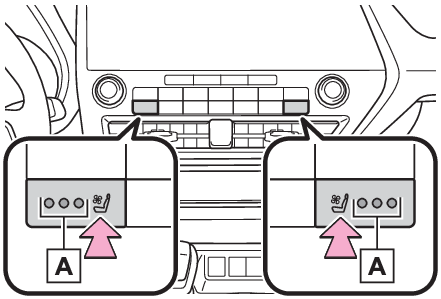

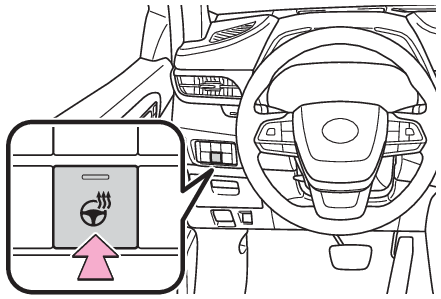

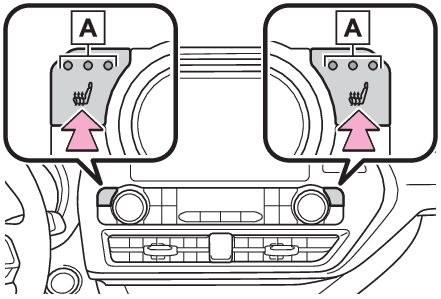

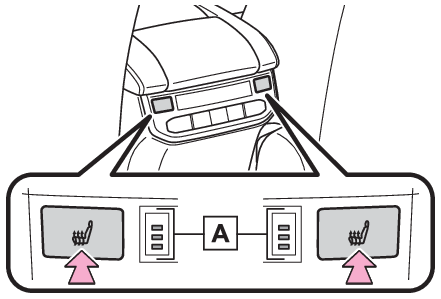

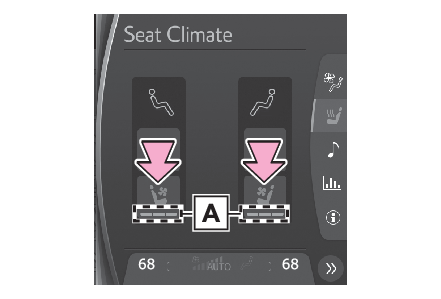

* If equipped Heated steering wheel Warms up the grip of the steering wheel Seat heaters Warm up the seat upholstery Seat ventilators Maintain good ventilation using a fan built into the seat Warning: Child safety Heated steering wheel and seat heater precautions To prevent minor burn injuries Care should be taken if anyone in the following categories comes in contact with the steering wheel or seats when the heater is on: Babies, small children, the elderly, the sick and the physically challenged Persons with sensitive skin Persons who are fatigued Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.) Notice: To prevent damage to the seat heaters Do not put heavy objects that have an uneven surface on the seat and do not stick sharp objects (needles, nails, etc.) into the seat. To prevent 12-volt battery discharge Do not use the functions when the hybrid system is off. Heated steering wheel Turns the heated steering wheel on/off The indicator light comes on when the heated steering wheel is operating. Note: Operation condition The power switch is in ON. Timer function The heated steering wheel will automatically turn off after a period of time. Seat heaters Front (Front air conditioning control panel) Each time the switch is pressed, the operation condition changes as follows. Hi (3 segments lit)→Mid (2 segments lit)→Lo (1 segment lit)→Off The level indicator (amber) lights up during operation. Vehicle with a 12.3-inch display Vehicle with a 8-inch display Front (Toyota multi-operation touch: Vehicle with a 12.3-inch display) Select to display the seats climate screen. Each time the switch is selected, the operation condition changes as follows. Hi (3 segments lit)→Mid (2 segments lit)→Lo (1 segment lit)→Off The level indicator (red) lights up during operation. Rear Each time the switch is pressed, the operation condition changes as follows. Hi (3 segments lit)→Mid (2 segments lit)→Lo (1 segment lit)→Off The level indicator (amber) lights up during operation. Note: Operation condition The power switch is in ON. Warning: To prevent overheating and minor burn injuries Observe the following precautions when using the seat heaters. Do not cover the seat with a blanket or cushion when using the seat heater. Do not use seat heater more than necessary. Seat ventilators Front air condioning control panel Each time the switch is pressed, the operation condition changes as follows. Hi (3 segments lit)→Mid (2 segments lit)→Lo (1 segment lit)→Off The level indicator (green) lights up during operation. Vehicle with a 12.3-inch display Vehicle with a 8-inch display Toyota multi-operation touch (Vehicle with a 12.3-inch display) Select to display the seat climate screen. Each time the switch is selected, the operation condition changes as follows. Hi (3 segments lit)→Mid (2 segments lit)→Lo (1 segment lit)→Off The level indicator (blue) lights up during operation. Note: Operation condition The power switch is in ON.
